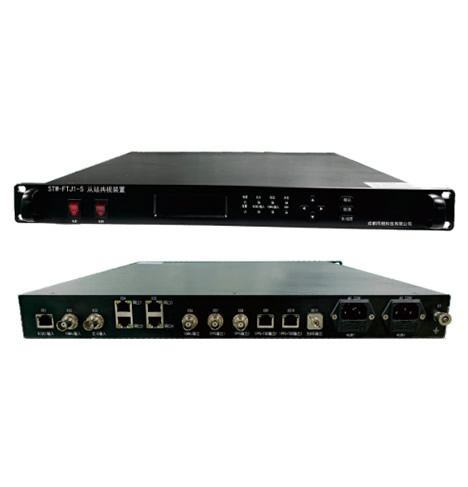

Product Features | Specification name | Indicator parameters | Remarks |
Regular | Professional Edition |
Frequency signal input | Input Frequency | 10MHz | 10MHz | Optional built-in rubidium clock |
Input Power | 7dBm~13dBm | 7dBm~13dBm |
Harmonic | ≤-30dBc | ≤-30dBc |
Spurious | ≤-70dBc | ≤-70dBc |
Time pulse input | Input Frequency | 1Hz(1PPS) | 1Hz(1PPS) | Optional built-in receiver |
Input amplitude | 2~6V | 2~6V |
Input pulse width | ≥20ns | ≥20ns |
Time reference input | Time reference | Internal receiver/external TOD | Internal receiver/external TOD |
External time input interface | Network port or serial port | Network port or serial port |
Input content format | ZDA (including year, month, day, hour, minute, and second) | ZDA (including year, month, day, hour, minute, and second) |
Frequency signal output | Output Frequency | 10MHz(2 channels) | 10MHz(4 channels) | Impedance 50 ohms |
Output Power | 7~13dBm | 7~13dBm |
Harmonic | ≤-30dBc | ≤-30dBc |
Spurious | ≤-80dBc | ≤-80dBc |
Synchronous time output | Output Frequency | 1Hz(1PPS) | 1Hz(1PPS) | The protocol format can be changed according to user needs |
Output Interface | Network port, serial port, display screen | Network port, serial port |
Time content format | ZDA (including year, month, day, hour, minute, and second) | ZDA (including year, month, day, hour, minute, and second) |
Synchronous second pulse output | Pulse Frequency | 1pps | 1pps | Impedance 50 ohms |
Output channels | 2-Channel | 4-Channel |
Output amplitude | ≥2.4V | ≥2.4V |
Pulse Width | 1us~10ms | 1us~10ms |
Rising edge | ≤2ns | ≤2ns |
BeiDou(COMPASS) common view index | Zero Baseline | 3ns | 1ns |
|
Long baseline | 10ns | 3ns |
GPS common view indicators | Zero Baseline | 2ns | 1ns |
|
Long baseline | 10ns | 5ns |
Monitoring Management | Physical Interface | Network port/serial port |
|
Supply voltage | Supply voltage | 220Vac ± 10% |
|
Power consumption | ＜50W |
|
Power interface | National standard Power plug |
|
environment | Operating temperature | -20oC ~ +50oC |
|
Storage temperature | -55oC ~ +85oC |
|
Appearance | Weight | ＜ 20kg |
|
Size | 1U or 2U standard chassis |
|
